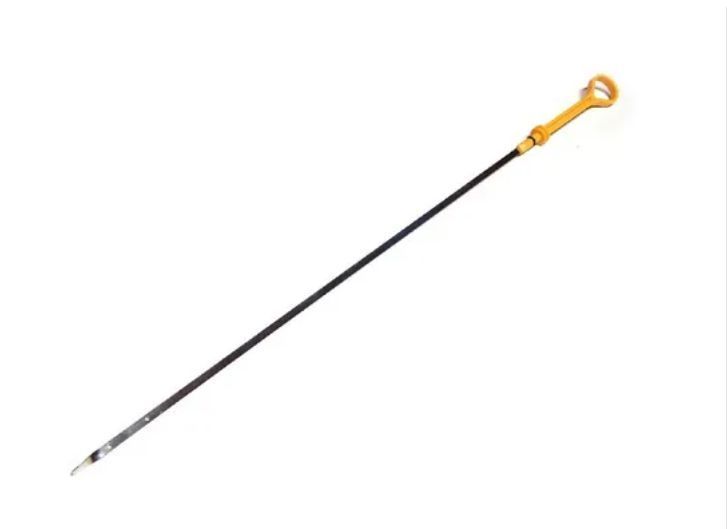

The oil dipstick is a simple yet indispensable tool for engine maintenance. It is a long, slender metal rod that extends down a tube into the engine's oil pan. Its primary purpose is to allow a vehicle owner or technician to manually check the level of the engine oil. The end of the dipstick is marked with "MIN" and "MAX" or "ADD" and "FULL" indicators to show the safe operating range. Beyond measuring quantity, the dipstick also serves as a crucial diagnostic tool, allowing for a quick visual inspection of the oil's condition and color.
Key Functions and Importance
Measure Oil Level
Its fundamental job is to provide a quick, accurate reading of the oil quantity in the pan, preventing under- or over-filling.
Assess Oil Condition
It allows for a visual check of the oil's color and clarity. Dark, black oil is old, while gritty oil may indicate internal wear.
Check for Contamination
A milky or frothy appearance on the dipstick is a tell-tale sign of coolant mixing with the oil, indicating a serious issue like a blown head gasket.
Seal the Dipstick Tube
The handle and its O-ring seal the tube, preventing oil from splashing out and stopping unmetered air from entering the crankcase.
Symptoms of a Failing Oil Dipstick
While the dipstick itself is simple, a failure of its handle or seal can lead to inaccurate readings, oil leaks, or even foreign objects entering the engine.
Broken or Cracked Handle
The most common failure. The plastic handle becomes brittle with age and heat, making it difficult or impossible to pull the dipstick out.
Worn or Missing O-Ring Seal
A bad seal can cause a vacuum leak, leading to a rough idle and a check engine light. It can also allow oil to splash out onto the engine.
Bent or Damaged Rod
A bent rod can be difficult to insert and remove, and may provide an inaccurate oil level reading.
Illegible Markings
Over time, the level indicators can become worn or rusted, making it impossible to get an accurate reading.
Oil Dipstick vs. Electronic Oil Level Sensor
What is an Electronic Sensor?
Many modern vehicles have replaced the physical dipstick with an electronic sensor in the oil pan. This sensor measures the oil level and sends a reading to the dashboard or infotainment screen, allowing the driver to check the level from inside the car without getting their hands dirty.
| Attribute | Oil Dipstick | Electronic Sensor |
|---|---|---|
| Reliability | Mechanical, Foolproof | Electronic, Can fail |
| Information | Level, Color, Smell, Condition | Level only |
| Convenience | Manual (Requires opening hood) | High (Check from driver's seat) |
| Failure Mode | Broken handle, bad seal | Sensor failure, faulty wiring |
The Oil Dipstick is a timeless manual ruler; the Oil Level Sensor is a sophisticated digital display.
