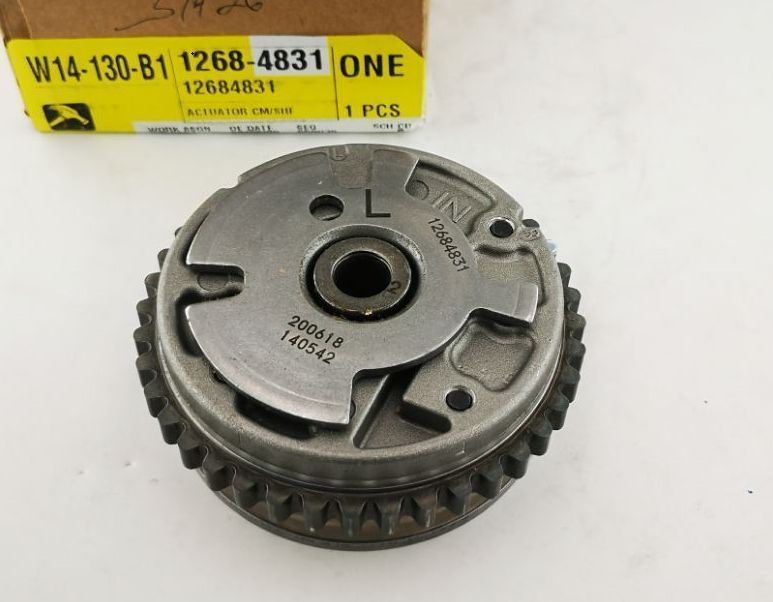

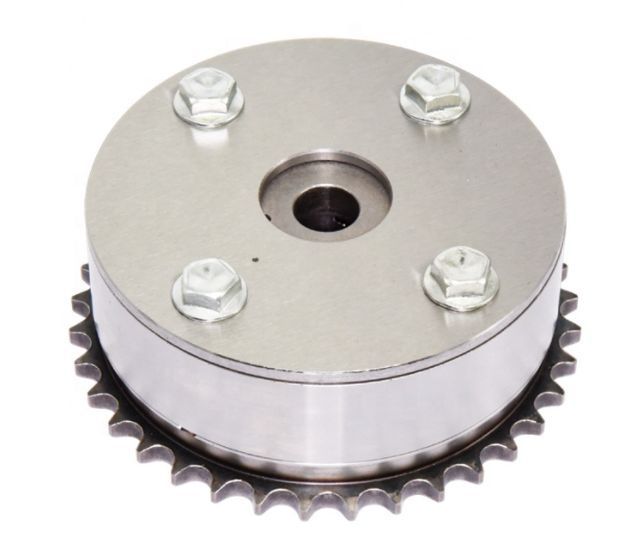

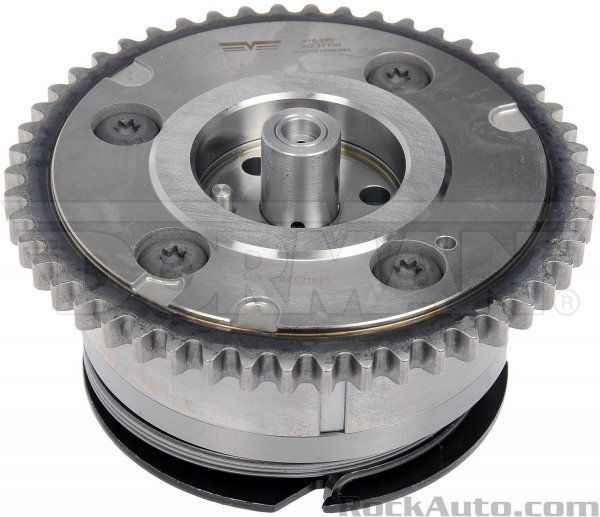

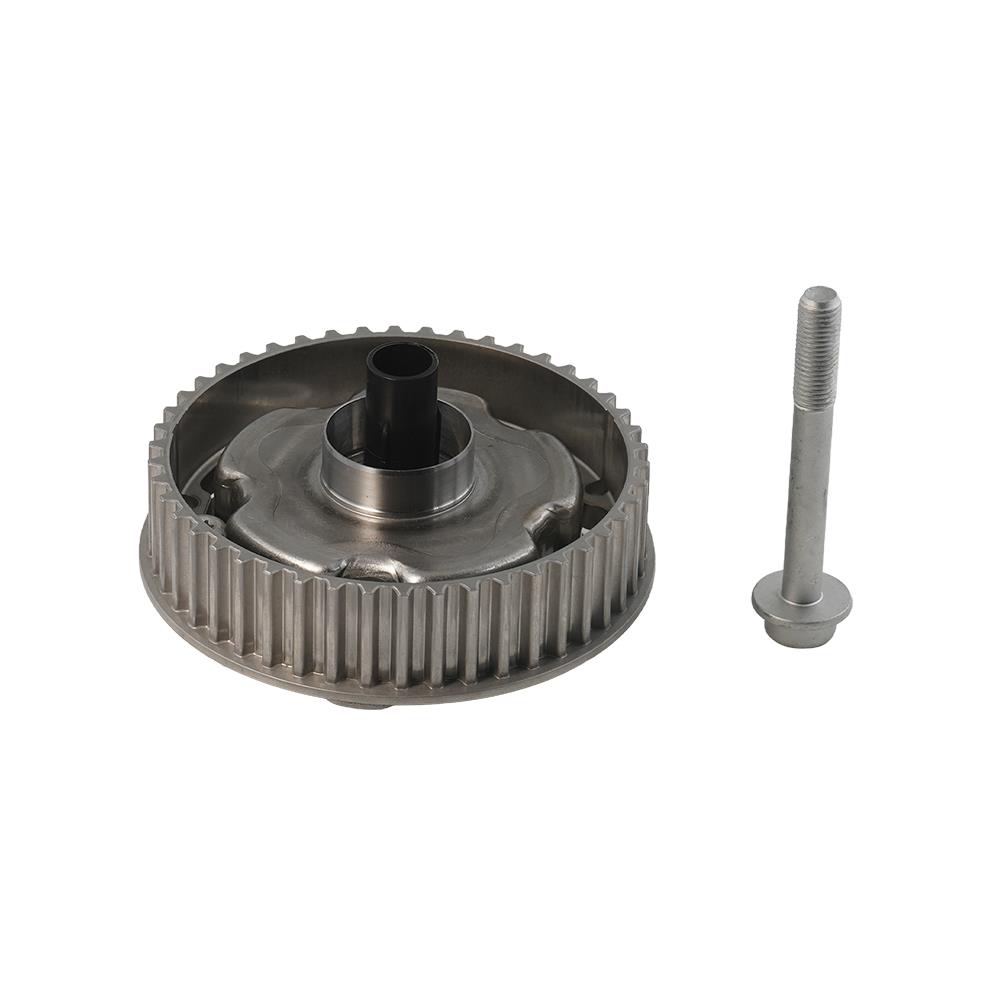

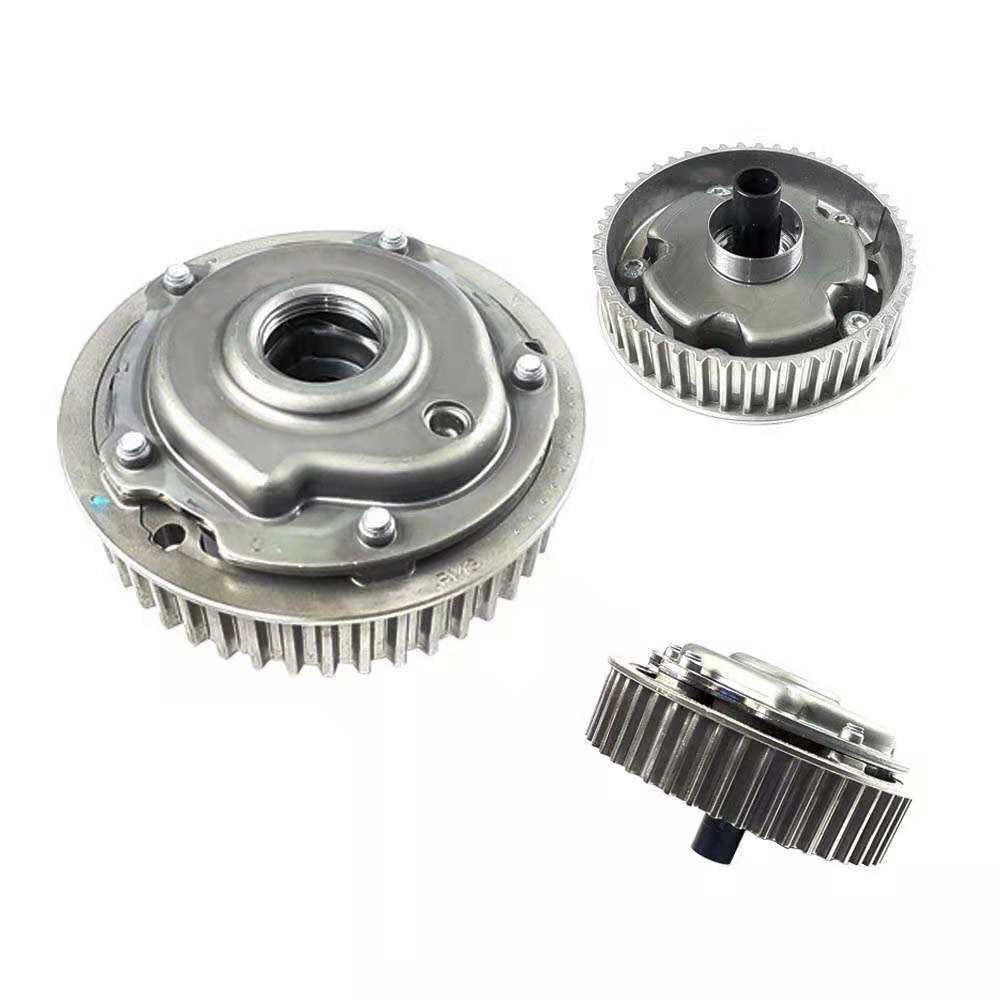

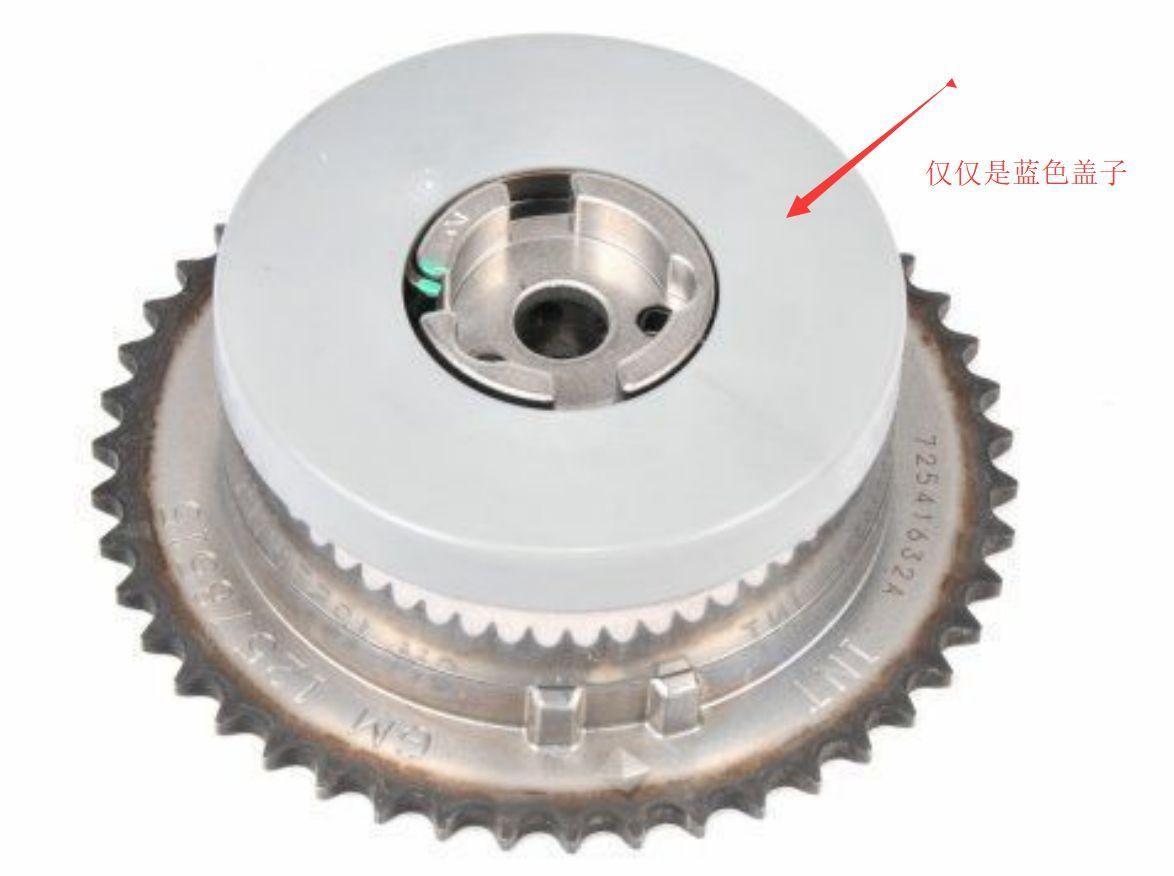

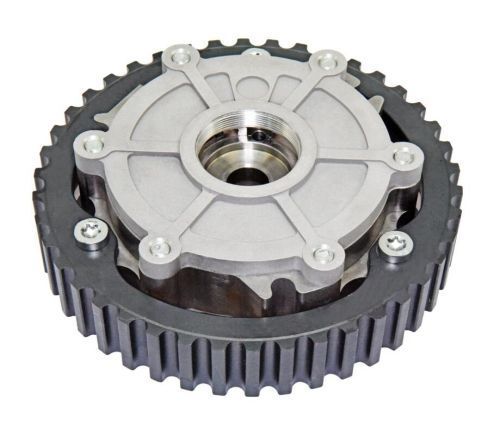

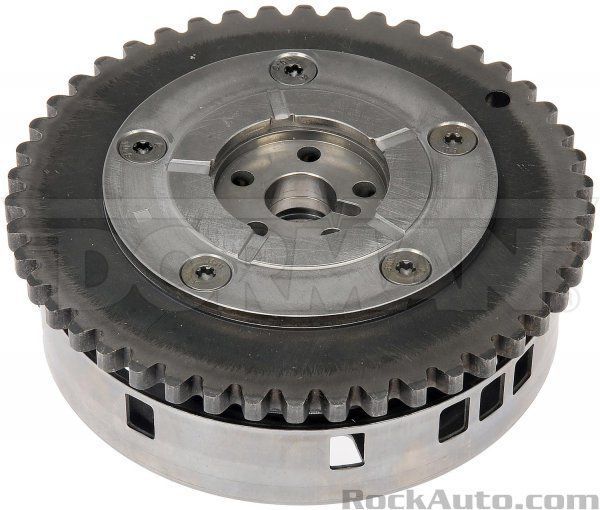

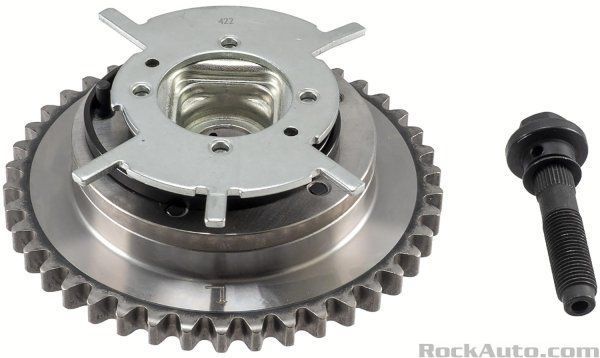

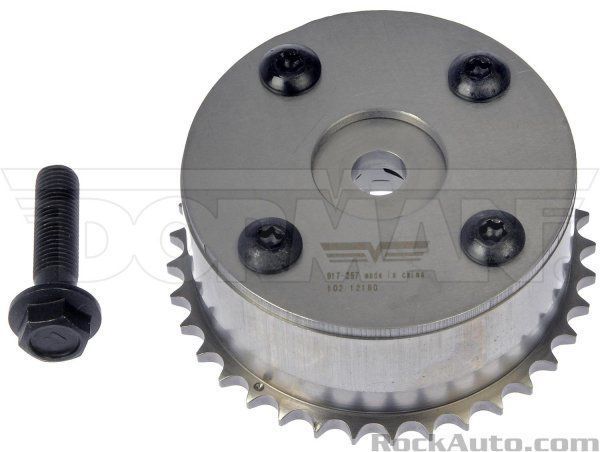

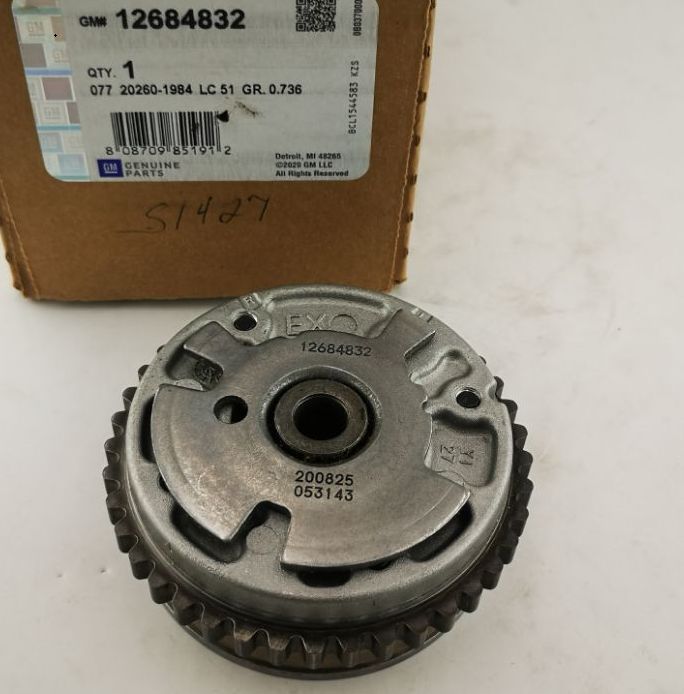

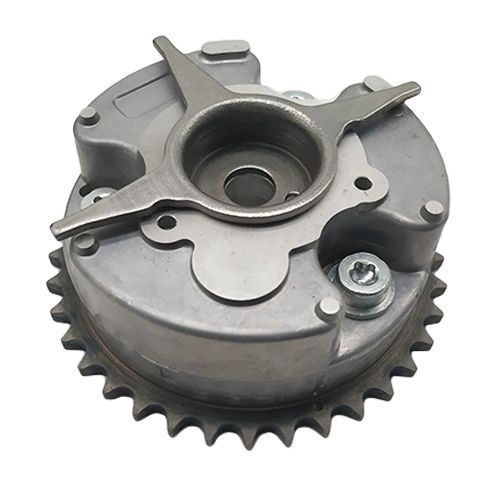

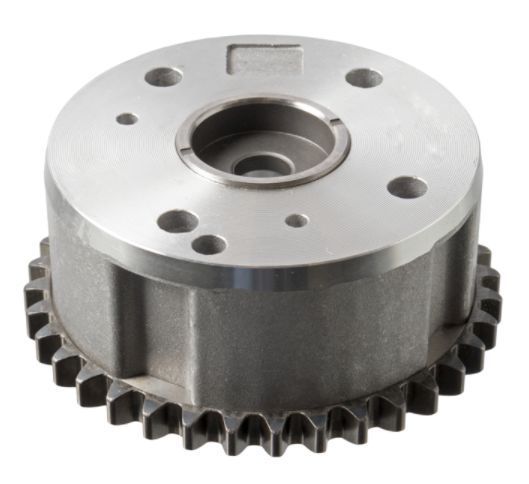

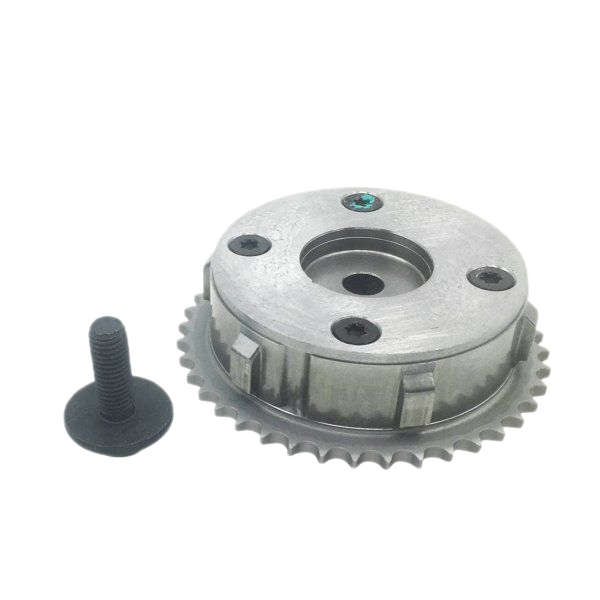

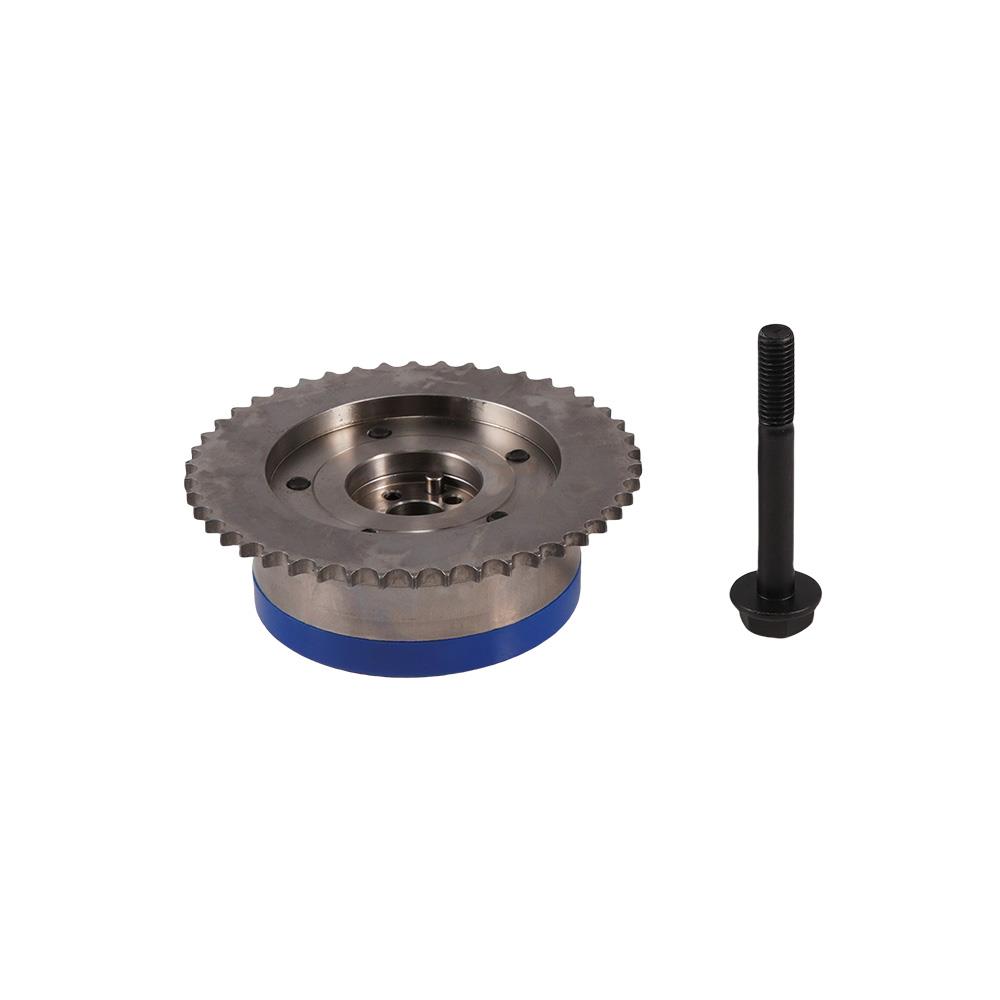

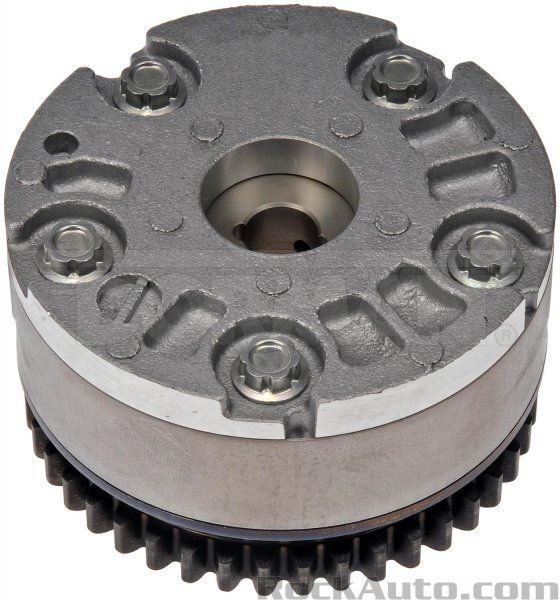

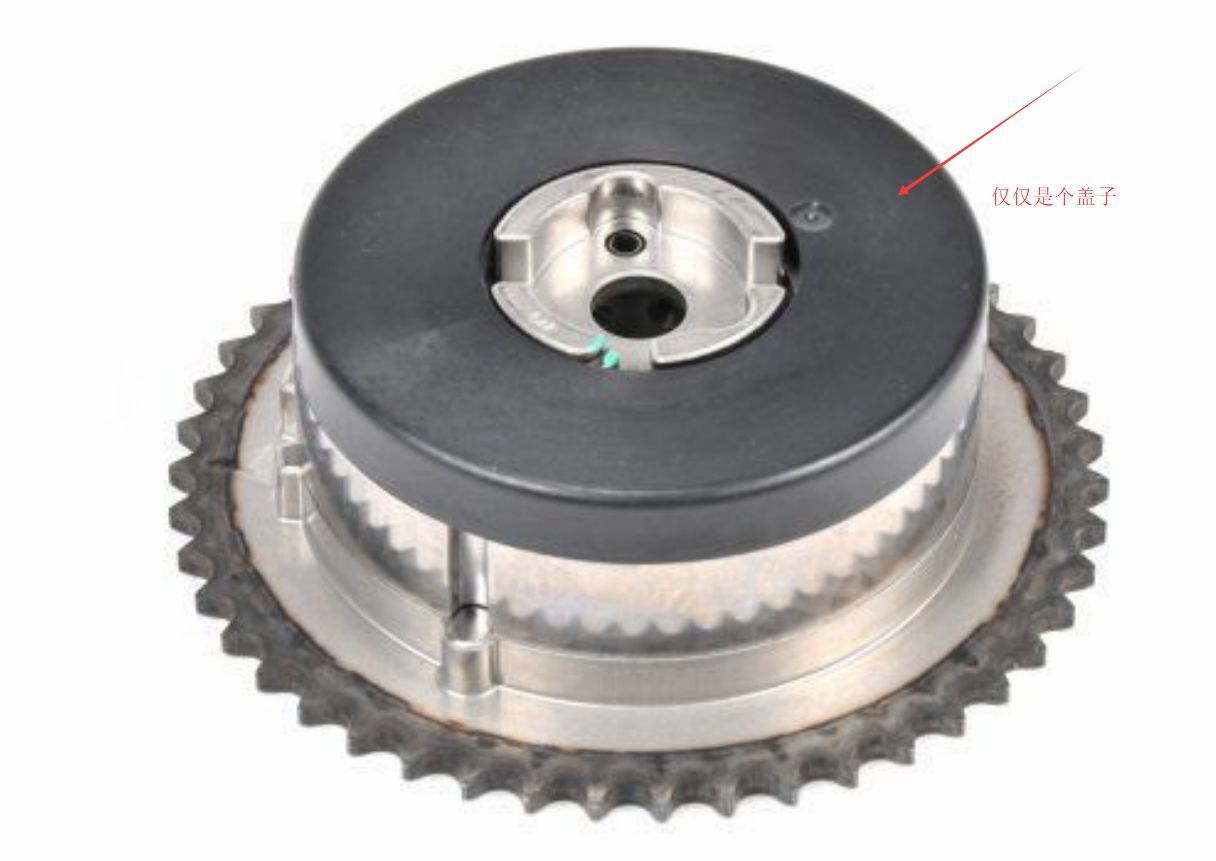

A camshaft phaser, also known as a VVT (Variable Valve Timing) actuator or cam gear, is a hydraulically adjustable camshaft sprocket at the heart of a modern engine's VVT system. Controlled by the vehicle's computer via an oil control solenoid, the phaser can change the angular position (timing) of the camshaft relative to the timing chain's rotation. This ability to advance or retard camshaft timing in real-time allows the engine to optimize performance, fuel economy, and emissions across the entire range of operating speeds.
Functions of a Camshaft Phaser
Optimize Engine Performance
It broadens the powerband by advancing timing for better low-end torque and retarding timing for higher top-end horsepower.
Improve Fuel Economy
By adjusting valve overlap, it allows for more efficient engine breathing under various load conditions, reducing fuel consumption.
Reduce Harmful Emissions
Optimized valve timing ensures more complete combustion and can be used to create an internal EGR effect, reducing NOx emissions.
Enable Smoother Idle
The ability to retard timing at idle helps to stabilize engine operation, providing a smoother and quieter idle.
Symptoms of a Failing Camshaft Phaser
A failing phaser severely impacts engine performance and fuel economy. Its failure is often caused by oil pressure or quality issues, which must be addressed to protect the new part.
Rattling or Ticking Noise
A diesel-like clatter from the top of the engine, especially at startup or low RPM, often caused by a broken internal locking pin or worn vanes.
Check Engine Light (VVT Codes)
The most definitive sign. Codes like P0011, P0014, or P0021 indicate the phaser is stuck or not responding as commanded by the ECU.
Rough Idle and Stalling
If the phaser is stuck in an advanced position, the engine will run very poorly or stall at idle speeds.
Loss of Power and Poor Fuel Economy
A non-functioning phaser prevents the engine from operating at its peak efficiency, leading to noticeable performance degradation.
Phaser vs. Fixed Timing Sprocket
What is a Fixed Timing Sprocket?
A fixed timing sprocket is a simple, solid gear that is keyed directly to the camshaft. It has no internal moving parts. The timing is mechanically set during installation and cannot be changed while the engine is running. This design is robust but offers a narrower range of engine performance.
| Attribute | Camshaft Phaser | Fixed Timing Sprocket |
|---|---|---|
| Timing Control | Dynamic (Adjustable) | Static (Fixed) |
| Mechanism | Hydraulic with internal vanes | Solid metal gear |
| Complexity | High | Low |
| Control Input | ECU via oil control solenoid | None (mechanically set) |
A Fixed Sprocket is like a light switch (on or off); a Camshaft Phaser is like a dimmer switch, allowing for fine-tuned adjustments.
