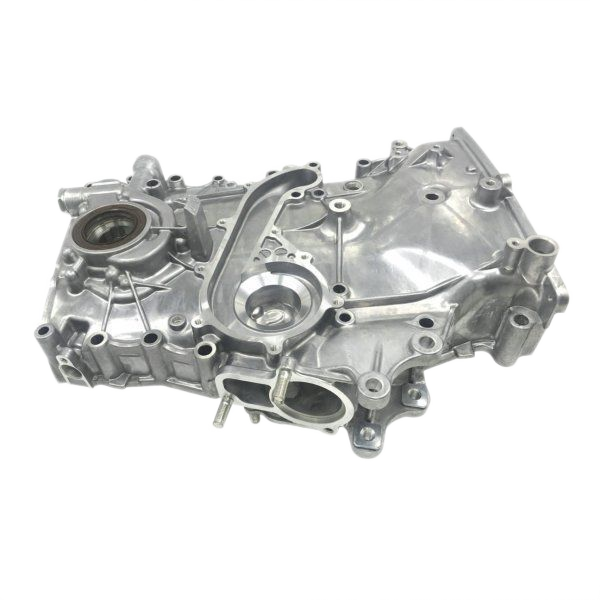

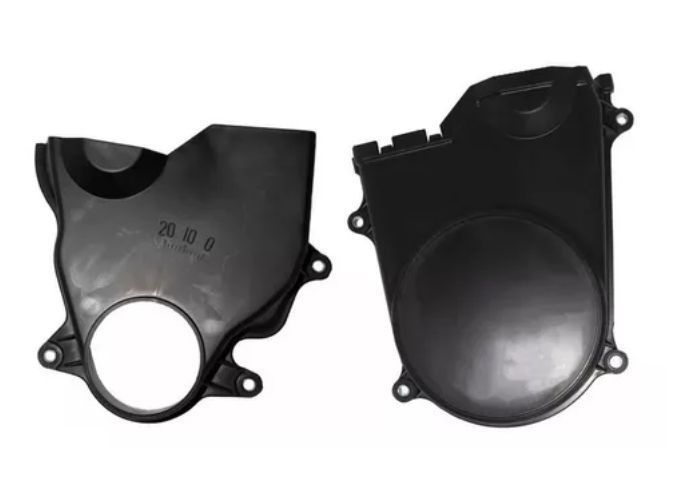

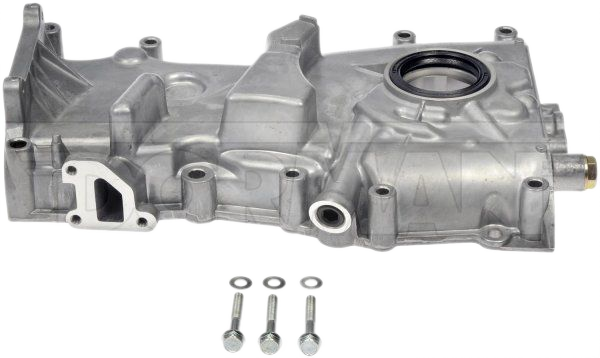

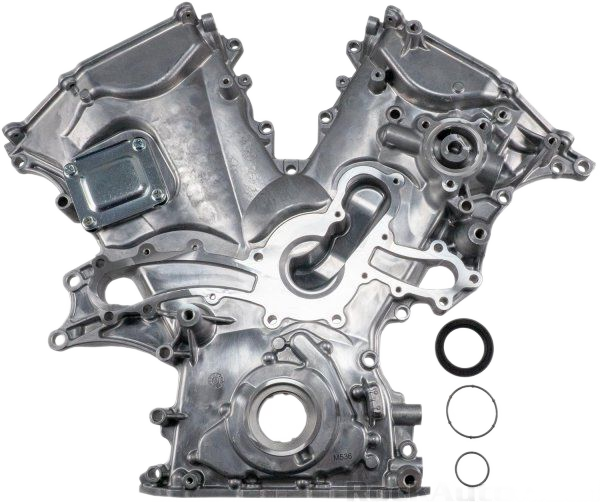

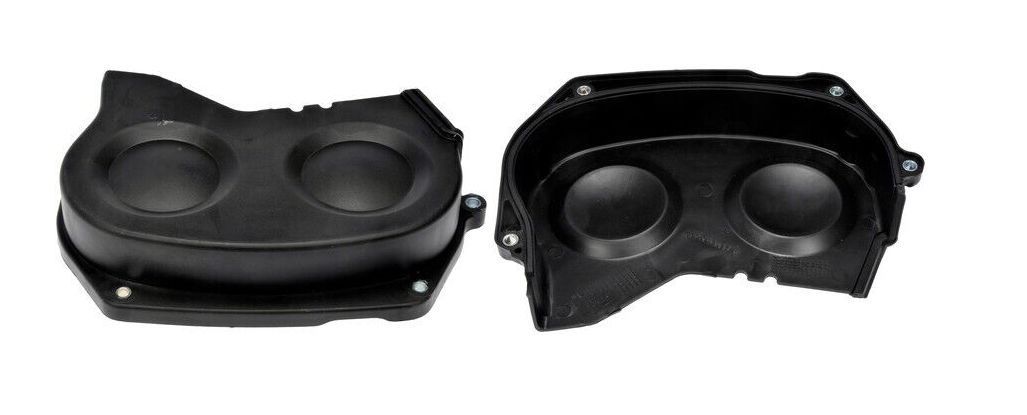

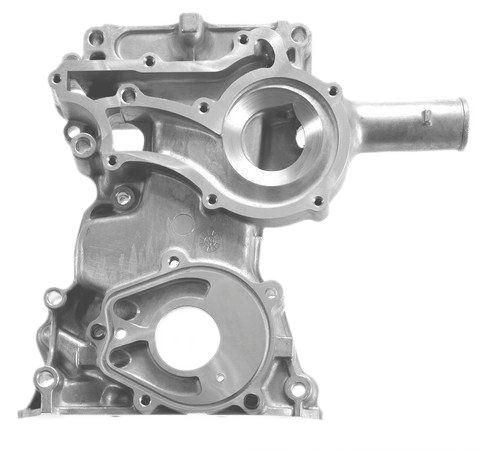

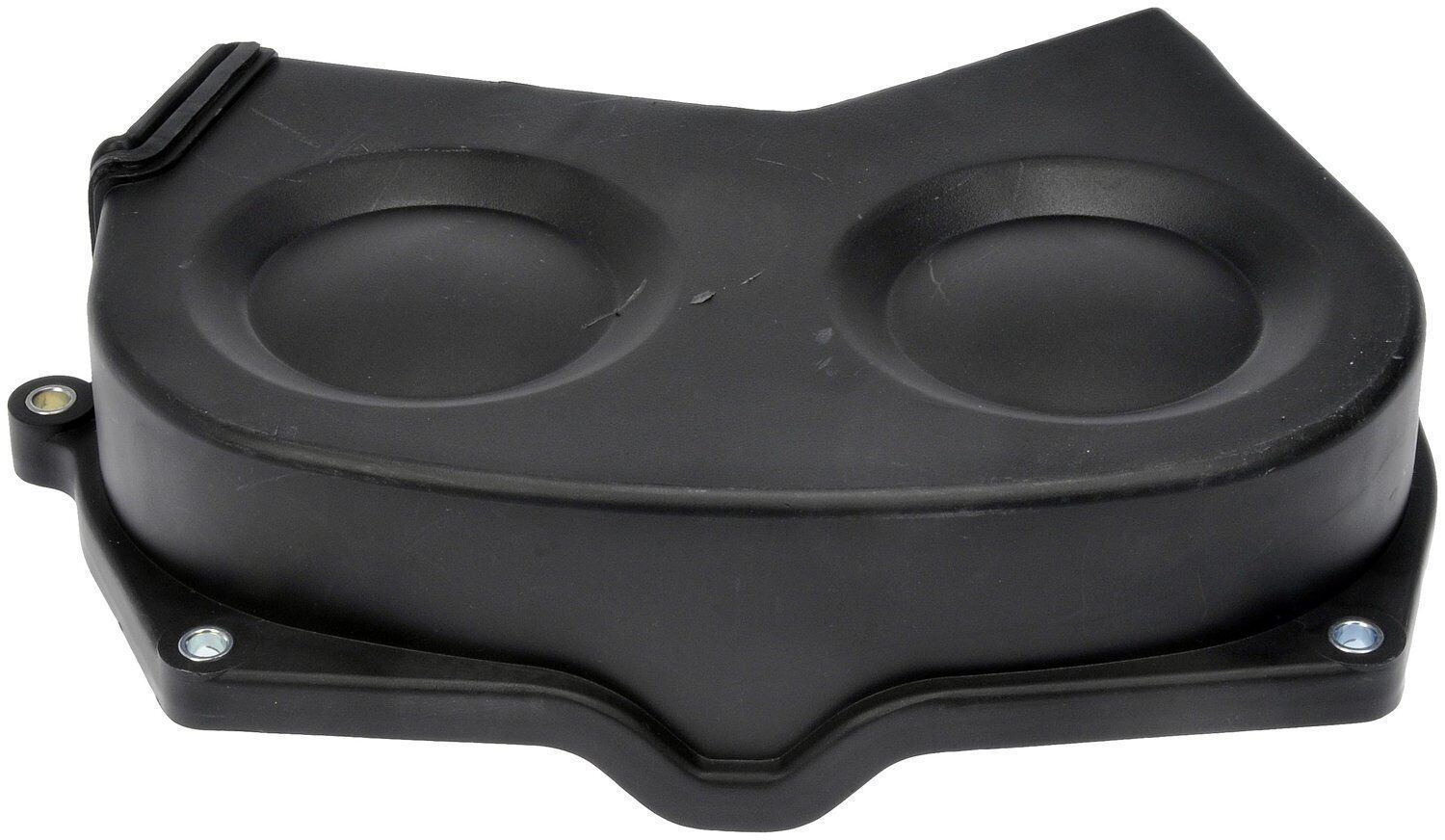

The timing cover is a protective housing, typically made of aluminum, stamped steel, or composite plastic, bolted to the front of the engine block. Its primary function is to seal the front of the engine and shield the critical timing components—such as the timing chain, belt, sprockets, and tensioners—from dirt, moisture, and road debris. It also contains engine oil, houses the front crankshaft seal, and often serves as a structural mounting point for accessories like the water pump and various sensors.
Functions of a Timing Cover
Protect Timing Components
It creates a sealed environment to shield the delicate timing belt or chain system from harmful external contaminants.
Contain Engine Oil
The cover and its gaskets/seals prevent oil from leaking out the front of the engine, ensuring proper lubrication for timing chains.
Provide Structural Mounting
It often serves as a rigid mounting point for the water pump, sensors, tensioners, brackets, and even engine mounts.
Reduce Engine Noise
It helps to muffle the mechanical noise generated by the high-speed operation of the timing chain or belt.
Symptoms of a Failing Timing Cover
A damaged or improperly sealed timing cover can lead to rapid failure of the timing system, resulting in catastrophic engine damage. Leaks should be addressed immediately.
Oil Leak from Front of Engine
The most common symptom, caused by a deteriorated gasket or a failed front crankshaft seal housed within the cover.
Visible Cracks or Damage
Impact from road debris or a previous internal component failure (like a broken chain guide) can crack or warp the cover.
Coolant Leak
If the water pump mounts to the timing cover, a leak from the pump's gasket may indicate a corroded or warped sealing surface on the cover itself.
Unusual Engine Noises
A scraping or rattling sound can occur if a loose timing chain or broken guide is making contact with the inside of the cover.
Timing Cover vs. Valve Cover
What is a Valve Cover?
The valve cover, or rocker cover, is located on the very top of the engine's cylinder head(s). Its sole purpose is to cover the valvetrain (camshafts, rocker arms, valves) and seal in the oil that lubricates them. It is much easier to access than a timing cover.
| Attribute | Timing Cover | Valve Cover |
|---|---|---|
| Location | Front of engine block | Top of cylinder head(s) |
| Protects | Timing belt/chain system | Valvetrain components |
| Primary Leak | Front main seal / Cover gasket | Valve cover gasket / Spark plug seals |
| Labor Intensity | High (many components removed) | Low (usually easy access) |
The Timing Cover is the engine's secure front door, protecting the vital inner workings, while the Valve Cover is the easily accessible lid on top.
